When building an industrial data acquisition system, many engineers get confused by RS485 and Modbus. They are related—but not the same. Here’s a simple explanation.
What Is RS485?
RS485 is a physical layer.
It defines how devices electrically communicate through wires.
Key features:
- Long-distance communication (up to 1200m)
- Supports up to 32 devices on a bus
- Strong noise resistance
- Used in almost all industrial environments
What Is Modbus?
Modbus is a communication protocol.
It defines how data is structured and interpreted.
Common types:
- Modbus RTU (runs on RS485)
- Modbus TCP (runs on Ethernet)
Modbus tells machines how to talk; RS485 tells them how to connect.

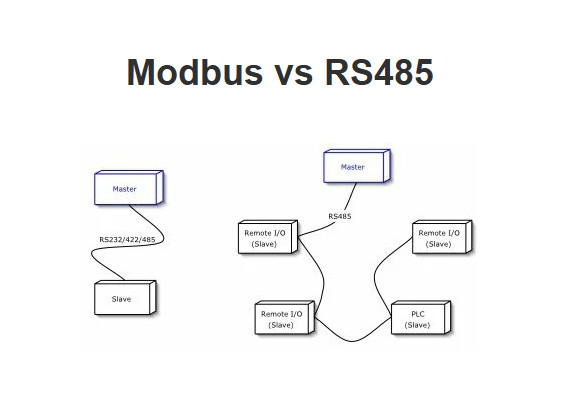

RS485 vs. Modbus: Quick Comparison
| Feature | RS485 | Modbus |
|---|---|---|
| Type | Hardware (physical layer) | Software protocol |
| Purpose | Defines wiring + signal | Defines data format + commands |
| Usage | Sensor networks, PLCs | Industrial data exchange |
| Relationship | Carries Modbus RTU | Runs on RS485 or TCP |
Which One Should You Use?
If you need:
- Long-distance wiring → RS485
- Structured machine data → Modbus
- Advanced monitoring & control → RS485 + Modbus RTU
Most factories use both together for stable and low-cost industrial automation.
